Solar Energy

Solar Energy

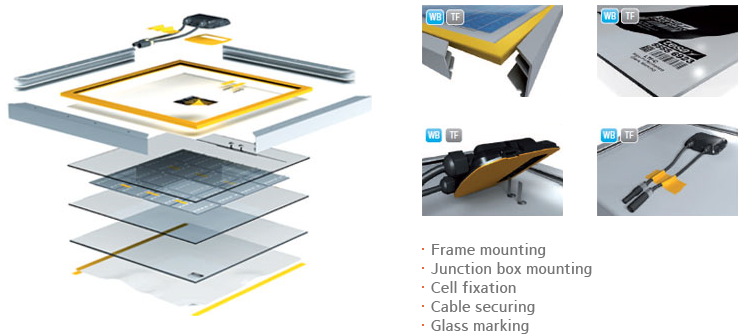

태양광 모듈에 필요한 SKC EVA sheet 및
tesa TAPE를 개발 및 가공하고 있습니다.

Single - sided tapes

Surface protection Cell fixation Cable fixation Ribbon fixation Ribbon cover Solar glass marking Module labeling
Product properties 50560 4129 64284 7140 50572 6926 6930
Total thickness 75 ㎛ 50 ㎛ 110 ㎛ 168 ㎛ 53 ㎛ 160 ㎛ 120 ㎛
Color white transparent blue dark yellow black black black, silver, white
Backing polyolefin film polyester film MOPP PVC film PET polymeric matrix acrylic
Adhesive synth, elastomer acrylic natural rubber natural rubber acrylic none tackified acrylic
Tensile strength 16 N/cm 46 N/cm 300 N/cm 73 N/cm >36 N/cm n.a. n.a.
Elongation at break >450% 140% 35% 130% <60% n.a. n.a.
Initial adhesion to steel 1.5 N/cm 2.3 N/cm 4.0 N/cm 4.0 N/cm 5.4 N/cm permanent n.a.
Temperature resistance 80℃ 200℃ short term 100℃ short term 170℃ short term 180℃ short term >1000℃ 120℃ long term
200℃ short term

Double-sided tapes

Bus bar mounting Box & frame mounting Frame mounting
Product properties 4983 62932 62934 62936 4957
Total thickness 30 ㎛ 500 ㎛ 800 ㎛ 1600 ㎛ 1100 ㎛
Color transparent black/white black/white black/white black/white
Backing PET-film PE-foam PE-foam PE-foam PE-foam
Adhesive tackified acrylic tackified acrylic tackified acrylic tackified acrylic tackified acrylic
Temperature resistance 200℃ short term 85℃ 85℃ 85℃ 85℃
Final adhesion to steel 7.6 N/cm >17 N/cm >17 N/cm >19 N/cm >4 N/cm
Weathering resistance ++ ++ ++ ++ ++
UL recognition 969 746C 746C 746C 746C
